Fiamma Caravanstore EVO Roll Out Awning

Elegant, stylish and affordable!

The Fiamma CaravanStore EVO is really simple and easy to install and to use.

Step 1, attach to your caravan awning rail channel, simply slide it into the housing and position on the top of the straight part of the rail along the roof.

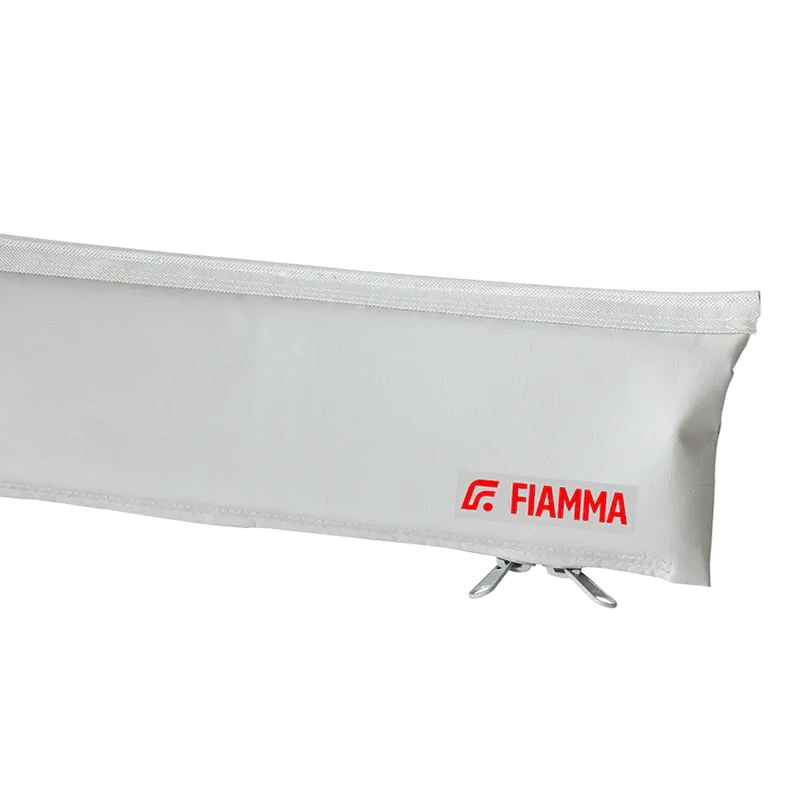

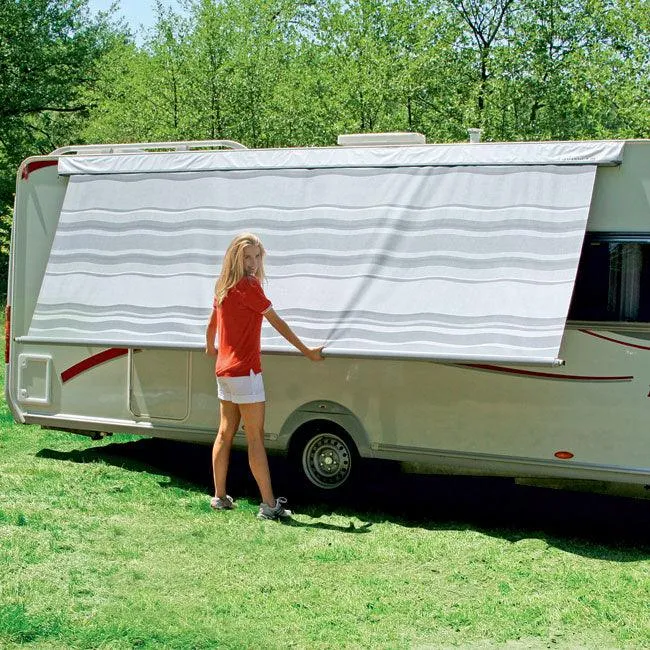

Step 2, unzip the transportation bag and roll out the canvas roof that includes the leg supports.

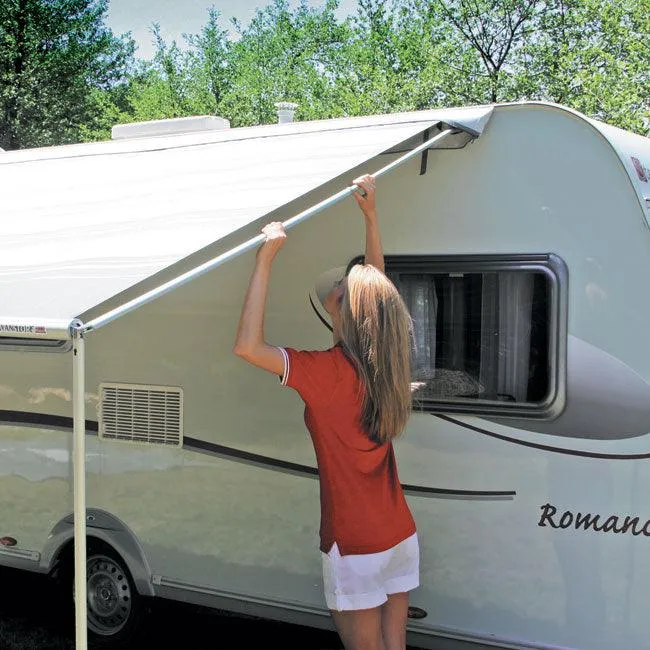

Step 3, Unfold the leg supports and adjust to your required height.

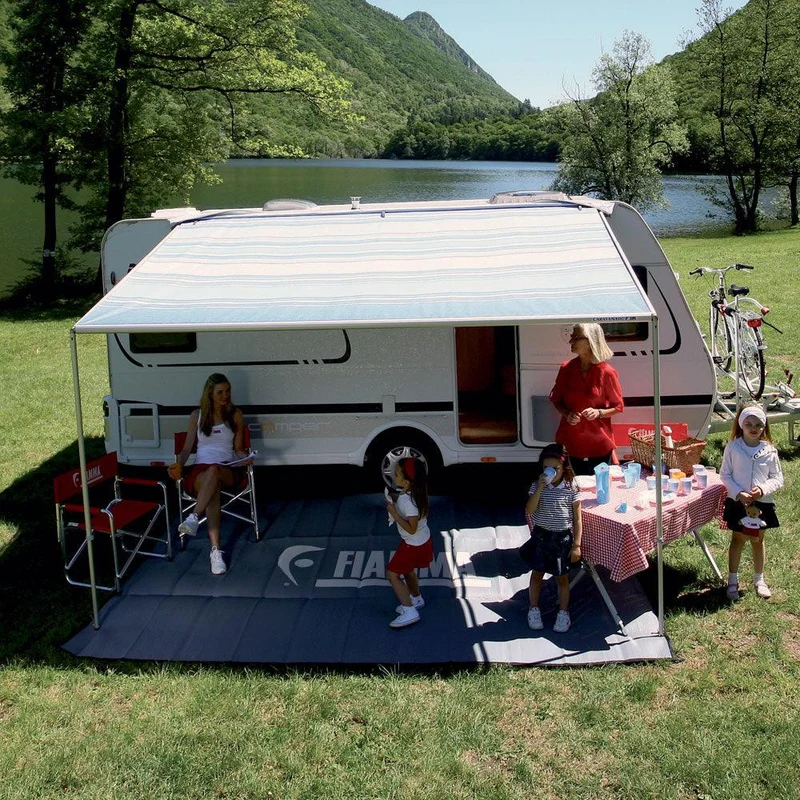

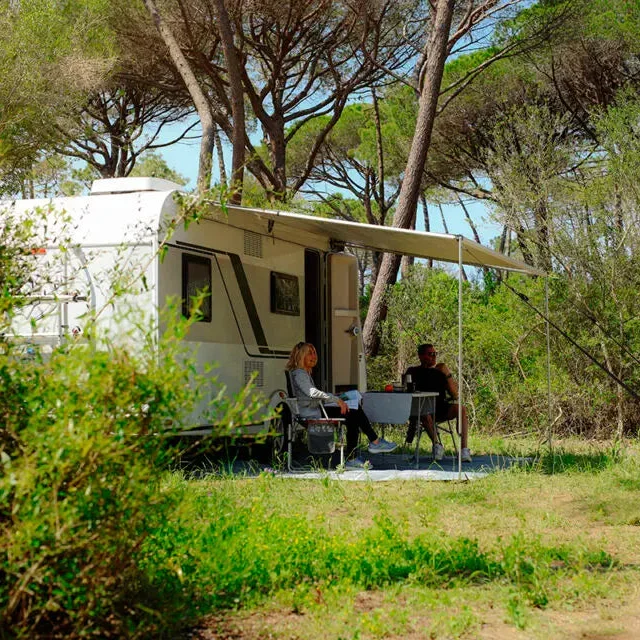

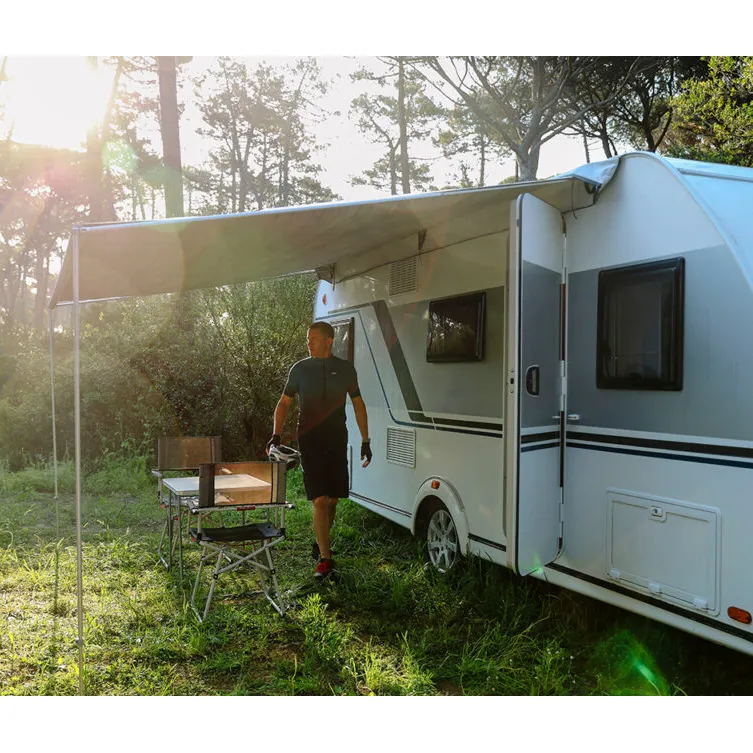

It takes just seconds to roll out the canvas completely and set-up. The Fiamma CaravanStore offers excellent shelter from the sun.

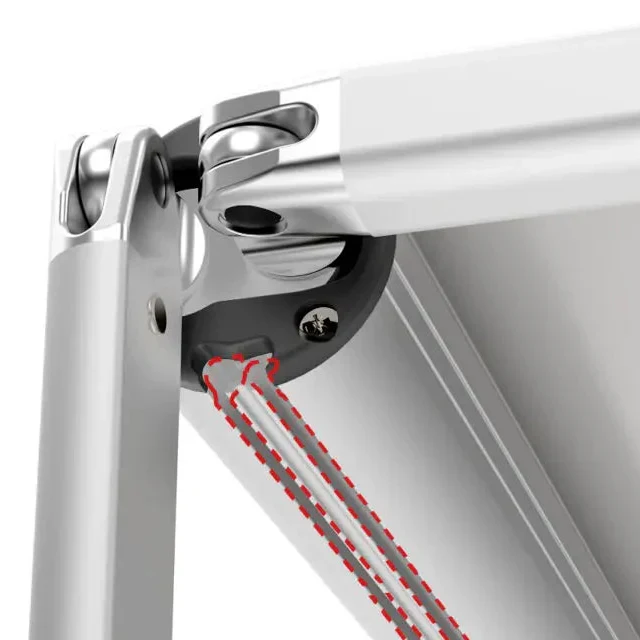

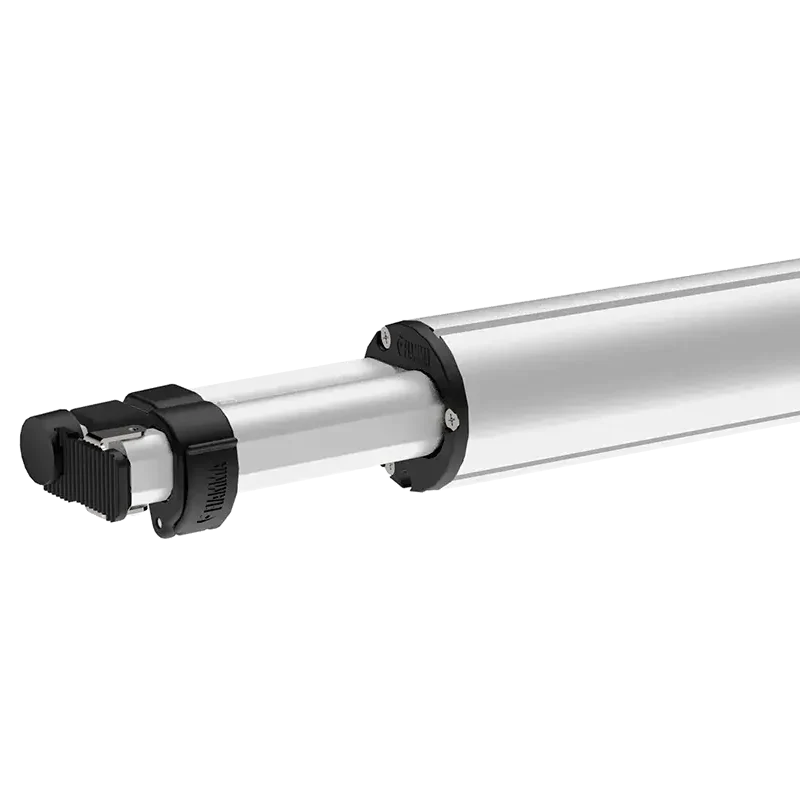

The support legs fold up inside the roller tube, and are easy to pull out, fold down and install - with articulated joints and no loose parts to fall out or get lost.

Available in two fabric roof colour options. Royal Blue or Royal Grey.

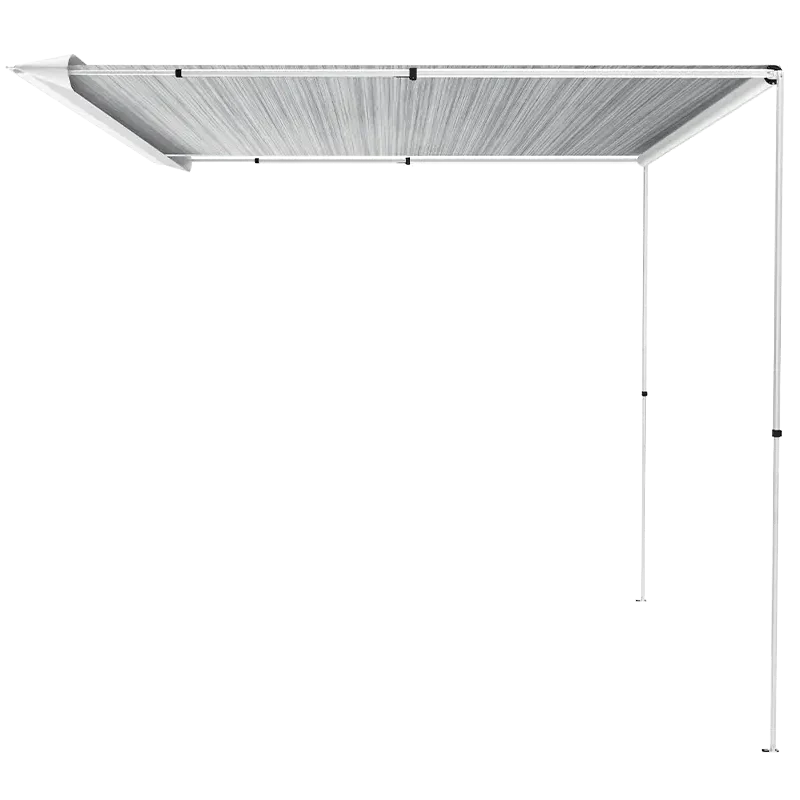

Model	Total Length (A)	Canopy Length (B)	Canopy Extension (C)	Max Height from Ground (D)	Weight
200	193cm	162cm	180cm	195cm	8.0 kg
230	235cm	202cm	225cm	225cm	9.0 kg
260	264cm	232cm	225cm	225cm	10.5 kg
290	286cm	254cm	250cm	225cm	10.1kg
320	316cm	284cm	250cm	225cm	13.2kg
370	366cm	334cm	250cm	225cm	14.3kg
425 *	416cm	384cm	250cm	225cm	15.5kg
450 **	447cm	414cm	250cm	225cm	16.6kg
500 ***	497cm	465cm	250cm	225cm	17.8kg
550 ***	547cm	515cm	250cm	225cm	18.9kg

* 1 tension Rafter Caravanstore in anodized aluminium included
** 1 tension Rafter Caravanstore and 1 Caravanstore Support Leg included
*** 2 CaravanStore Support Leg included
